Bioflow Filter

The JUWEL Bioflow Internal filter system, which has undergone several tests by independent institutions, has long been one of the world leaders in filter systems for modern aquariums and has proved its worth a million times over.

Characteristics

  • Large filter volume and simple maintenance
  • Excellent filtering thanks to the dual flow principle
Available Sizes
Bioflow Filter MSuitable for you
Bioflow Filter LSuitable for you
Bioflow Filter XLSuitable for you
Which size fits in my aquarium?

Compatibility

Bioflow Filter M
Rio 125 LED, Rio 180 LED, Rio 240, Lido 120 LED, Vision 180 LED, Trigon 190 LED
Bioflow Filter L
Rio 350 LED, Vision 260 LED
Bioflow Filter XL
Rio 450 LED, Vision 450 LED, Trigon 350 LED
Back
Dealer Locator
Product Details
The JUWEL Bioflow Internal filter system, which has undergone several tests by independent institutions, has long been one of the world leaders in filter systems for modern aquariums and has proved its worth a million times over.

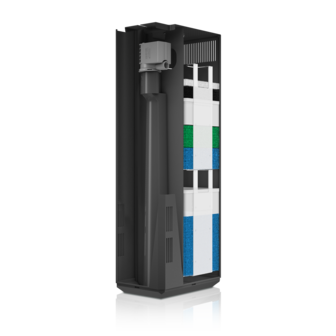

Large filter volumes and easy care


The JUWEL Bioflow filter system stands out from the crowd with its extra-large filter volumes. This gives plenty of room for excellent mechanical, chemical and biological filtering and ensures a long filter service life and longer service intervals. The filter's design offers you easy access to the pump and heater and the use of special filter cages makes it easy to remove and clean the filter media.

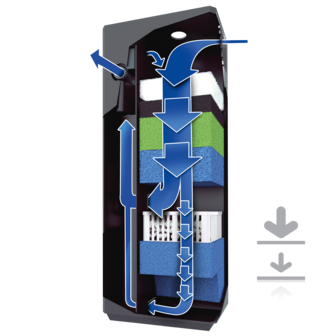

Excellent filtering using the bipolar current principle


JUWEL Bioflow filter system's unique bipolar current principle makes it possible to achieve different flow velocities, which helps to create the extraordinarily high filtering performance of the Bioflow system. For mechanical and chemical filtering in the upper part of the filter, a relatively fast flow velocity is particularly useful. A slower flow velocity, on the other hand, is useful in the lower part of the filter, to ensure optimum development of anaerobic bacteria, which are vital for biological filtering.

Ideal flow and integrated heater

JUWEL Bioflow filters come fitted with a highly efficient, silent Eccoflow circulation pump, with performance adjusted to the size of the filter system using scientific criteria. Bioflow Filters are also compatible for use with JUWEL heaters, which are perfectly embedded in the water circulation, ensuring an even distribution of heat through all areas of your aquarium.

Safety first – the water should stay in the aquarium!


The Bioflow filter system does not rely on hose connections which can reduce performance, often leading to leakages. The Bioflow system is the safest way of filtering the water in your aquarium.

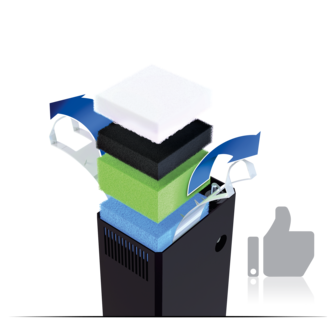

Top-quality filter media

Every Bioflow filter system comes fitted with five top-quality filter media:

1. The poly pad catches coarse particles of dirt in the water, thereby serving as a mechanical pre-filter.

2. The carbon sponge absorbs odour compounds and turbidity as well as toxic compounds, leaving you with crystal-clear water. In this way, it acts as a chemical filter.

Optional: 3.The excellent absorption properties of Carbax enduringly and quickly bind discolorations, odours and toxic substances and ensure crystal-clear water.

4. Nitrax is a biological filter medium containing specialist micro-organisms to break down poisonous metabolites (ammonium/nitrite) in your aquarium, thus reducing the danger of fish mortality. What's more, Nitrax reduces the growth of algae by anaerobically breaking down nitrates, thus supporting the vitality of your fish.

5. The coarse sponge is used for mechanical filtering and makes it easier for bacteria to establish themselves in the aerobic zone.

Optional: 6. Cirax / Phorax / Amorax

Cirax is an organic filter medium which creates the optimum conditions for useful bacteria to settle, due to its large, highly porous surface.

Phorax is a highly effective filter medium used to break down phosphates in your aquarium.

Amorax is a highly efficient filter medium made of natural Zeolite.

7. The fine sponges are used mainly for biological filtering in the anaerobic zone.

Technical Data

  • Product Code

    87050

  • Measurements

    15,5 x 10,2 x 41,7 cm

  • Filter Volume

    3,5 L

  • Compatibility

    Rio 125 LED, Rio 180 LED, Rio 240, Lido 120 LED, Vision 180 LED, Trigon 190 LED

  • Incl. Pump

  • Product

    Eccoflow 600

  • Product Code

    85754

  • Pump Power l/h

    600 l/h

  • Energy Consumption W

    7 W

  • Cable Length

    238 cm

QUESTIONS AND ANSWERS

  • The circulating pump of the JUWEL inside filter pulls the water from the upper and lower water layers of the aquarium into the filter. Due to the special construction of the filter, the water passes from the top to the bottom through the filter media which greatly simplifies the filter maintenance. The filter media are: The white poly pad as mechanical pre-filter. Tip: It absorbs the rough dirt and prevents the other filter media from clogging quickly. The replacement is realised in a simple, quick manner and ensures the full functionality of the system. The black carbon sponge binds chemical contaminations. The green Nitrax sponge contains special micro-organisms that break down nitrate and consequently counter the growth of algae. The blue coarse filter sponge represents the biological filter stage I. Separation of the water flow Part 1 of the filtered water is directly returned to the aquarium through the riser of the pump. Part 2 of the filtered water moves to the “second” filter stage of the biological “slow filter”. Cirax, the white basket with the filter ceramics, filters with a large surface under aerobic (= oxygen-enriched) conditions. The blue, fine-pored filter sponge represents biological filter stage I which operates in a strong manner under anaerobic (= oxygen-deficient) conditions. After that, the water that has been filtered repeatedly flows back into the aquarium.
  • The JUWEL inside filter "Bioflow" is a biologically operating aquarium filter. The filters are adapted to the respective aquarium volume in an ideal manner: The capacity of the filter pump is designed for twice or 3 times the throughput per hour (e. g. Rio 180 = 180 litres at 600 l/h pump capacity). Thanks to its great volume, the filter features extensive backup capacity and it has a long service life (e. g. fewer maintenance intervals). The JUWEL inside filter is equipped with various filter media that facilitate biological pollutant degradation performance. The dual flow principle: A unique feature of the JUWEL inside filter is the dual flow principle in the models Bioflow M, L and XL. The water passes through the two high volume filter blocks at different speeds. This additionally optimises the biological filter process. Scientifically tested: The JUWEL filter system has successfully been tested with regard to its effectiveness in scientific long-term tests by independent institutes a number of times. All JUWEL inside filters are designed with extensive backup capacity, guaranteeing optimised filtering for top water quality. Users appreciate the inside filter’s ease of use and built-in safety: The water stays inside the aquarium!
  • The run-in period of the Bioflow filter may last 6 - 8 weeks. The run-in period can be halved by using the additional filter medium bioBoost.
  • There may be various different reasons, if your pump is unpleasantly noisy. Please check that your pump is positioned correctly, and make sure to observe the 6 to 8 week run-in period when taking your Bioflow filter into service. To ensure optimised functionality and running smoothness for your pump, we recommend that the pump is cleaned on a regular basis, and that wear parts such as the impeller and axle along with the rubber bearings, are replaced every 12 months.
  • In addition to the filter media fitted at the factory, JUWEL Aquarium offers a range of additional filter media. 1. When newly setting up or replacing your other filter media, we recommend using the filter booster bioBoost that immediately activates the new filter media and accelerates the filtration performance in your aquarium. 2. If your aquarium shows increased ammonium values, you should used our filter medium “Amorax”. It quickly and effectively binds ammonium, prevents the formation of ammonia and promotes the vitality of your fish. 3. If you perceive odour formation in your aquarium, or if the water changes in colour, you should use the filter medium “Carbax”. 4. The filter medium “Cirax” provides an even greater surface for filter bacteria to settle, than the fine filter sponge bioPlus, and it thus provides for a consistent filtering effect in your aquarium. 5. If your aquarium shows increased phosphate values, you should use our filter medium “Phorax”. This medium removes phosphates from your aquarium, and it effectively reduces algae growth and promotes improved plant growth.
  • "BIOFLOW M/L/XL: bioBoost should be placed directly underneath the filter floss. We recommend that Carbax is used in the upper filter insert, between bioCarb and Nitrax. Amorax, Cirax and Phorax should be placed at the top of the lower filter insert. BIOFLOW SUPER: bioBoost should be placed directly underneath the filter floss. Carbax, Amorax, Cirax and Phorax can be used in the upper part of the filter basket, instead of the Nitrax sponge. Please refer to our change flyer in the download centre for information about the exact placement of our filter media."
  • If you are operating the EccoSkim using the filter mount on the filter itself, it is not possible to also attach the FilterGrid to the filter. However, you can attach the EccoSkim to the glass using the provided suction mount, to make room to mount the FilterGrid to the intake slots of the filter.
  • Yes. However, you will need to individually adjust the cut-out, rather than using the template on the back of the cover. If a FilterCover is already mounted to your filter, you can carefully enlarge the cut-out at the bottom using a box cutter to make the FilterGrid fit.
  • It goes without saying that the manner and the frequency of cleaning the JUWEL filter depend on the individual conditions. Our recommendations to clean or replace the media are based on average experience: Replace the white poly pad on a weekly basis. Replace the black carbon sponge approx. every month if needed. Replace the optional Carbax filter basket after approx. 2 months. Replace the green Nitrax sponge every 2 months. Replace the blue, coarse-pored filter sponge after approx. 3 months. Replace Cirax filter baskets with ceramics after approx. 12 months, Phorax after approx. 2 weeks and Amorax after approx. 3 months. Replace the blue, fine-pored filter sponge after approx. 9-12 months. Important: For safety reasons, always disconnect all devices that are operated in the water from the power grid during the filter maintenance. Never replace all blue filter media at the same time. Check the water level in the filter at regular intervals; if the water level drops, the media will need to be replaced due to the fact that they are clogged and prevent the water from flowing through them.
  • We recommend inserting Cirax at the top spot in the lower filter insert.
  • The impeller is the rotor equipped with a magnet in the pump. It should be replaced every 12 months in order to ensure operating quietness.
  • If the filter media have been clogged, the water quantity passing through the filter is reduced. The water level in the filter slowly begins to drop. The capacity of the pumps is designed in such a manner that they have sufficient reserves. Tip: Check the water level in the filter housing every week, when replacing the filter floss. If it dropped in comparison to the water surface of the aquarium, carefully flush the upper filter media or replace them.
  • You may find the respective information in the instructions for use in the aquarium passport. If you have misplaced your aquarium passport, you are able to access the file “compatibility chart” in our download area. Based on the size of your filter media, you are then able to identify the filter system used in your aquarium. Please feel free to contact our customer service for assistance.
  • The pump is arranged next to the filter media in the intake chamber of the filter housing. Advantage: Free access to the filter media simplifies the filter maintenance!
  • With the exception of the Eccoflow 1500 that may be installed in the filter Bioflow L/6.0 and XL/8.0 only, you may insert all JUWEL pumps into each filter. Simply keep in mind for pumps 280 and 1500 that they do not fit into the Bioflow filter. And conversely the pumps Bioflow 280 and 1500 do not fit into the filters Compact, Standard or Jumbo.
