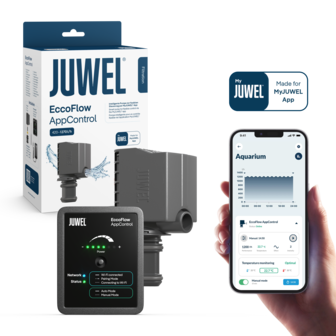

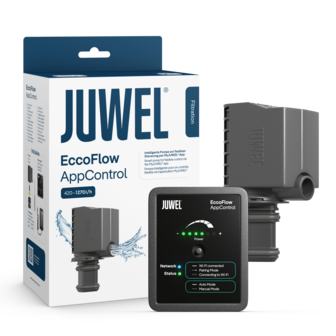

EccoFlow AppControl

Intelligent pump control for your JUWEL Aquarium

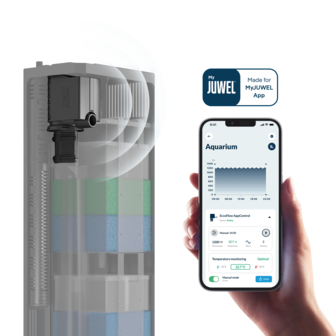

Conveniently control the water flow in your aquarium via the MyJUWEL app. EccoFlow AppControl combines a flexibly adjustable pump flow rate from 420 to 1270 l/h with intelligent features for optimal control of your JUWEL filter system.

Characteristics

Variable pump flow rate from 420 to 1270 l/h
Convenient control via the MyJUWEL app
Predefined performance profiles for JUWEL aquariums
Dynamic Power Adjustment (DPA) automatically adjusts the pump performance to the filter’s level of contamination – for constant flow
Night Control enables an individually adjustable pump performance for the night
Integrated water temperature monitoring
Push notifications for critical system conditions
Automatic pump pause during feeding in combination with the SmartFeed AppControl automatic feeder
Optimised water circulation for stable conditions in the aquarium
Powerful and quiet operation

Dealer Locator

Product Details

Intelligent control for your JUWEL filter system

EccoFlow AppControl transforms your JUWEL filter into an intelligent, connected filter system. Using the MyJUWEL app, you can conveniently control the pump performance and adjust the water flow to suit the requirements of your aquarium.

With a variable flow rate of 420 to 1270 l/h, EccoFlow AppControl offers flexible control for different requirements in the aquarium. Predefined performance profiles make it easy to select suitable settings for your JUWEL aquarium.

Intelligent features provide additional convenience. Dynamic Power Adjustment (DPA) automatically adjusts the pump performance to the filter’s level of contamination – for a constant flow. With Night Control, you can set an individual pump performance for the night-time hours. Thanks to the integrated temperature monitoring, you can keep an eye on your aquarium’s water temperature directly in the app.

With Smart Alert, you receive real-time push notifications about critical system conditions. In combination with the SmartFeed AppControl automatic feeder, the pump can automatically pause before feeding and remain switched off for an adjustable period of time. This gives your fish enough time to feed undisturbed before the food is drawn into the filter.

The result: intelligent pump control, optimised water circulation and greater control over your JUWEL aquarium – conveniently via the MyJUWEL app.

With the MyJUWEL app (available for iOS and Android), you can keep your lighting under control at all times.

MyJUWEL APP

Download from App Store:

Google Play - Download

App Store - Download

Flexible pump flow rate from 420 to 1270 l/h

Variable Power

Flexibly adjust the flow rate to suit the requirements of your aquarium. EccoFlow AppControl allows variable adjustment between 420 and 1270 l/h.

Intelligent adjustment to the filter condition

Dynamic Power Adjustment

Dynamic Power Adjustment (DPA) automatically adjusts the pump performance to the filter’s level of contamination – for a constant flow.

The right performance for every JUWEL aquarium

Predefined Performance Profiles

Predefined performance profiles allow you to optimally adapt the pump performance to your JUWEL aquarium – conveniently and individually tailored to the respective aquarium.

Monitor the water temperature directly in the app

Temperature Monitoring

Conveniently keep an eye on the temperature of your aquarium via the MyJUWEL App. Thanks to integrated temperature monitoring, this important aquarium parameter is digitally available at all times.

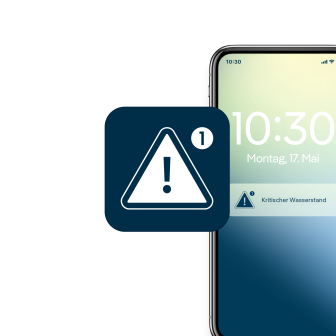

Keeps you informed when it matters

Smart Alert

Push notifications inform you in real time about critical system conditions such as water level, pump blockages or temperature deviations. Smart Alert also reminds you of upcoming maintenance intervals – so you can react quickly when it matters.

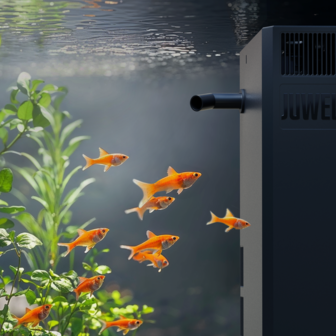

Optimised water circulation for plants and animals

Aqua Balance

Balanced water circulation supports stable conditions in the aquarium, providing an important foundation for plants and animals.

Automatic reduction during the night

Night Control

With Night Control, you can individually adjust the pump performance for the night-time hours. The start and end times as well as the desired performance can be conveniently set via the MyJUWEL App – for a calmer water flow during the night.

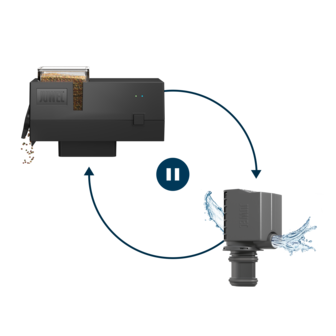

Intelligently linked to feeding

Smart Integration

In combination with the SmartFeed AppControl automatic feeder, both devices communicate intelligently with each other. Before feeding, EccoFlow AppControl automatically pauses and remains switched off for an adjustable period of time. This gives your fish enough time to feed undisturbed.

JUWEL

Pump Accessories

Matching Pump Accesories

Cleaning Brush

The appropriate cleaning brush for all JUWEL pumps.

Eccoflow Impeller

The right Impeller for every Eccoflow pumps.

5 Sizes

Diversion nozzle set

The JEWEL Diversion Nozzle Set allows the optimal alignment of the flow in your aquarium.

OxyPlus O2 Diffusor

The OxyPlus O2-Diffusor increases the oxygen level in your aquarium.

Technical Data

Product Code

85750
Cable Length

236 cm
Power

24 W
Pump Power l/h

420 - 1270 l/h
Suitable for

Rio, Lido, Vision & Trigon
Compatibility

Lido 120 LED, Lido 200 LED, Rio 125 LED, Rio 180 LED, Rio 240, Rio 290 LED, Rio 350 LED, Rio 450 LED, Trigon 190 LED, Trigon 350 LED, Vision 180 LED, Vision 260 LED, Vision 450 LED

Show moreShow less

Questions and Answers

You can use any characters in your Wi-Fi password as long as it is no longer than 32 characters.

Attention: Please note that if the router password is changed after a successful connection has been established, the controller switches to connecting mode because it still recognises the old password. It will practically ‘wait’ until the old password is restored and cannot be reached in this mode. However, profiles will continue to be played back.

Note: If the WLAN password has changed, please set the AppControl to pairing mode and connect it again via the MyJUWEL app. The controller cannot be controlled until this is done.
Our smart devices from JUWEL Aquarium deliberately use a 2.4 GHz Wi-Fi connection, as this offers a significantly greater range compared to 5 GHz. This ensures a stable connection, even if your aquarium is a little further away from the router.
Before setting up, please ensure that your router is either set to 2.4 GHz or working in automatic mode (2.4/5 GHz). This will ensure that your devices can be connected without any problems - for reliable control directly via the MyJUWEL app.
Note: If your router cannot establish a connection in automatic Wi-Fi mode, you must temporarily deactivate 5GHz in your router.

Please deactivate 5 GHz WLAN during setup.
You can then reactivate automatic mode on the router.
Recommendation: Restart your router, smartphone and controller beforehand - this is often the easiest way to resolve minor connection problems.

Please check the following:
Is your router up to date with the latest software version?
Is the MyJUWEL app up to date?
Is the DHCP server activated?
Has the router been switched to IPv4? (Alternatively, you can use dual-stack if your router supports this).
Are new devices authorised by the router firewall?
Recommendation: Restart your router, smartphone and controller beforehand - this is often the easiest way to resolve minor connection problems.

Please check the following:
- Is your router up to date with the latest software version?
- Is the MyJUWEL app up to date?
- Is the DHCP server activated?
- Has the router been switched to IPv4? (Alternatively, you can use dual-stack if your router supports this).
- Are new devices authorised by the router firewall?
Yes, in order for the MyJUWEL app to find the controller correctly via Bluetooth and WLAN, it needs access to the location.
Please allow the MyJUWEL app all requested authorisations the first time you start it.
So that your WLAN devices can automatically connect to our MyJUWEL app, the release of so-called ‘location data’ is required. Don't worry: this is not GPS data - your location is not actually requested.
The background to this is that Wi-Fi devices communicate via the names of the available networks in your neighbourhood. According to legal requirements, this network information is already considered location data, as it could theoretically allow conclusions to be drawn about your position. The operating system must therefore display this information - even if no location tracking takes place in practice.

Important to know: This data is used exclusively for communication between your smartphone and the control unit. It is not forwarded to our servers. The sole purpose is to ensure that your devices can reliably find and connect with each other.
Recommendation: Restart your router, smartphone and controller beforehand - this is often the easiest way to resolve minor connection problems.

Please check the following:
Is your router up to date with the latest software version?
Is the MyJUWEL app up to date?
Is the DHCP server activated?
Has the router been switched to IPv4? (Alternatively, you can use dual-stack if your router supports this).
Are new devices authorised by the router firewall?
How do the smart devices behave in the event of a power outage or internet outage?

The behavior of our smart devices depends on the type of outage:

a) Power outage – power and internet are available again afterwards

As soon as power is restored and the router has re-established an active internet connection, the devices automatically reconnect to the Wi-Fi.
The current time is synchronized correctly, and all saved programs continue to run as usual without any time shift.

b) Power outage – power is back, but no internet is available

If power is available but the router has no internet connection, the devices cannot retrieve the current time.
In this case, they start internally at 00:00 from the moment power is supplied. The programs will still run, but with a time offset because the correct time is missing.
As soon as the internet connection is restored, the devices automatically re-synchronize.

c) No power outage – only Wi-Fi or internet fails

If only the Wi-Fi or internet connection fails, the devices remain in operation.
Since the time is already known, the saved programs continue to run correctly and without interruption. An internet connection is not required for this.
Checklist: Connecting your smart device to Wi-Fi (2.4 GHz, 802.11 b/g/n)

This checklist will help you successfully connect your smart device to your Wi-Fi network.
The device supports 2.4 GHz and the Wi-Fi protocols 802.11 b/g/n. Please go through the following
steps one by one.
- Use 2.4 GHz only: The device works exclusively on the 2.4 GHz band. Please disable 5 GHz during setup or create a separate 2.4 GHz network (e.g. “WLAN_24”).
- Enable Wi-Fi mode b/g/n: The device requires 802.11b mode. Please make sure your router is set to b/g/n mixed and not to “n-only”.
- Check the Wi-Fi channel: Many devices support only channels 1–11. Set the channel manually to 1, 6, or 11.
- Check the Wi-Fi password: The password must be between 8 and 63 characters long. Avoid special characters (ä, ö, ü, ß, €, spaces at the beginning or end) and use only letters and numbers.
- Wi-Fi name (SSID): Avoid special characters and emojis in the Wi-Fi name. The SSID must not be hidden.
- Router security: Enabled: WPA2-PSK (AES or TKIP/AES). Not enabled: WPA3-only, “PMF required”, MAC filtering, client isolation, or a guest network with isolation.
- Mesh / repeater: Connect the device directly to the main router. Disable repeaters or mesh nodes during setup.
- Enable DHCP: Make sure DHCP is enabled and that there are enough free IP addresses available.
- Smartphone settings: During setup, turn off mobile data and VPN, enable location services, and stay close to the router.
Note: The device transmits with +20 dBm output power in 802.11b mode. A stable
connection is only guaranteed if the router meets the conditions listed above.

Show more Show less
